Hanger-Type Shot Blasting Machine

Hanger-Type Shot Blasting Machine Specification

Diameter
Hanger hook dia: 30-60 mm (as per requirement)

Phase
Three Phase

Shape
Rectangular vertical structure

Product Type
Hanger-Type Shot Blasting Machine

General Use
Shot Blasting

Material
Mild Steel, Abrasion Resistant Steel (internal wear parts)

Type
Industrial Shot Blasting Equipment

Capacity
500 Kg to 2000 Kg per batch (depending on configuration)

Weight (kg)
3000 - 8000 Kg (as per model)

Computerized
No

Automatic
Semi-Automatic/Automatic (based on model)

Touch Screen
Optional

Control System
PLC Controlled

Surface Treatment
Shot Blasting

QC System
In-house quality control

Tolerance
0.05 mm

Drawing
Available on request

Voltage
380V/415V/440V, 3 Phase, 50Hz

Dimension (L*W*H)
3700 mm x 2000 mm x 5700 mm (example model)

Feature
Heavy-duty construction, High blasting efficiency, Easy maintenance

Color
Black or Custom as required

Dust Collector
Cartridge Filter / Bag Filter type

Max Workpiece Size
1200 mm x 1600 mm

Conveyor Type
Monorail or Y-track (as per version)

Blast Wheel Quantity
2-4 (depending on model)

Cleaning Cycle
5-15 minutes per batch

Blast Wheel Power
7.5 kW x 2

Noise Level
85 dB(A)

Installation
Foundation required

Maintenance Access
Front and rear service doors

Loading Method
Manual/Hoist Loading

Abrasive Flow Rate
Adjustable, 200-300 Kg/min

Application
Automobile, Foundry, Forging, Steel Structure, Fabrication

Hanger Rotation Type
Automatic/Manual Rotation

Hanger-Type Shot Blasting Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
1 Unit Per Month

Delivery Time
1

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
STANDARD AND SECURED

Main Export Market(s)
Asia, Australia, Central America, Western Europe, North America, South America, Eastern Europe

Main Domestic Market
All India

Certifications
CERTIFIED COMPANY

About Hanger-Type Shot Blasting Machine

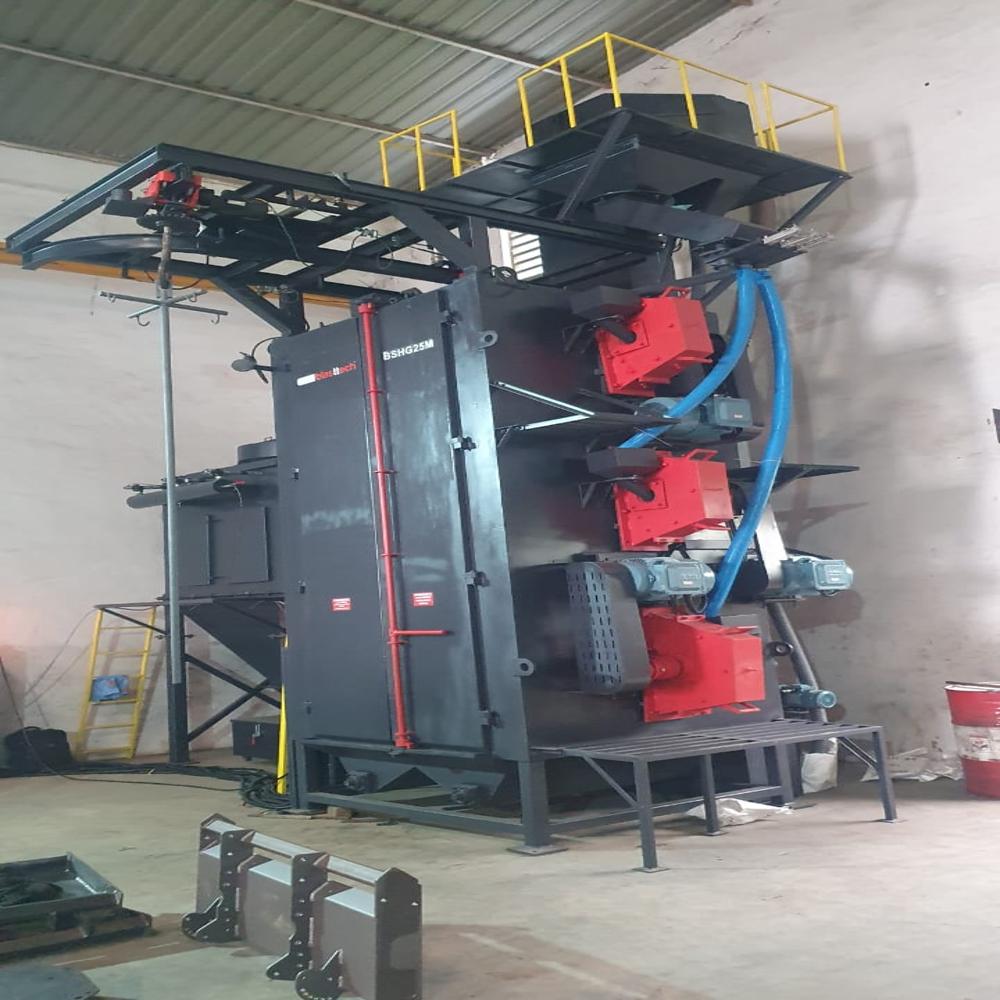

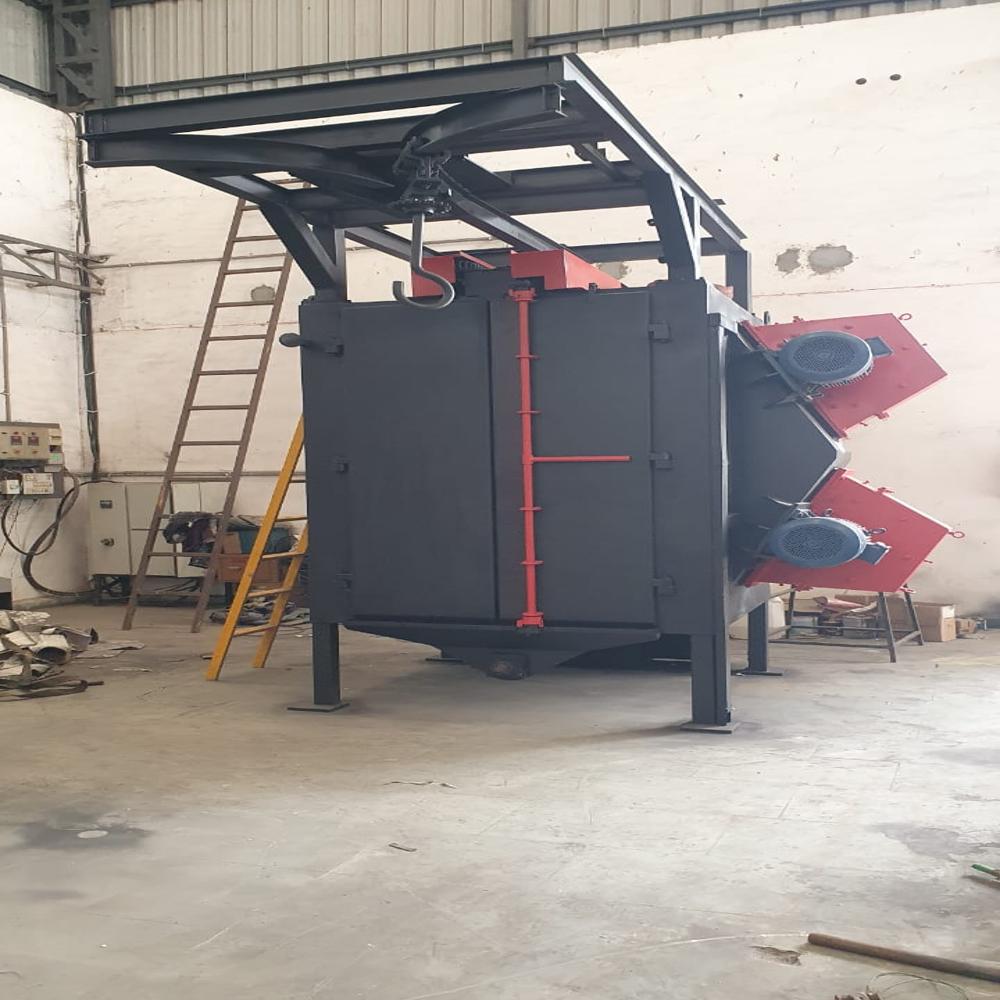

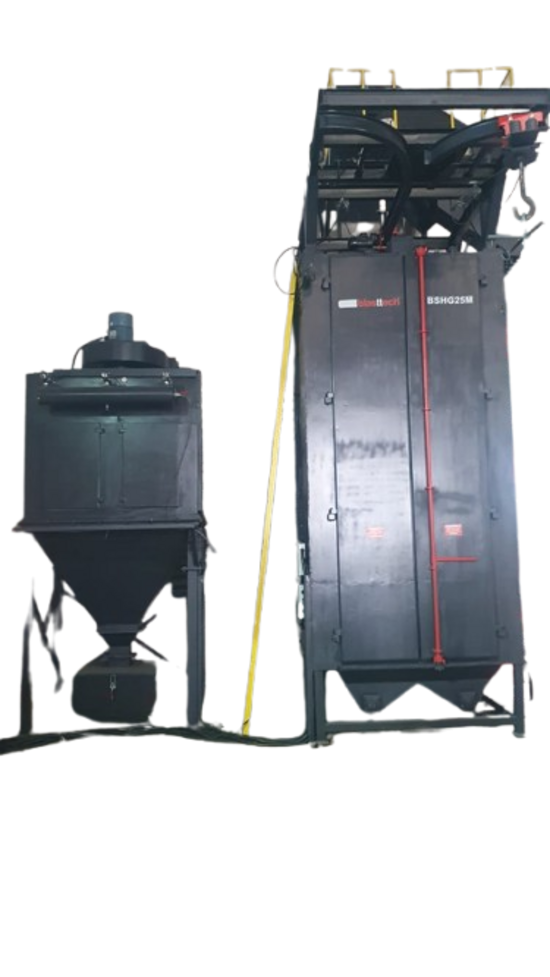

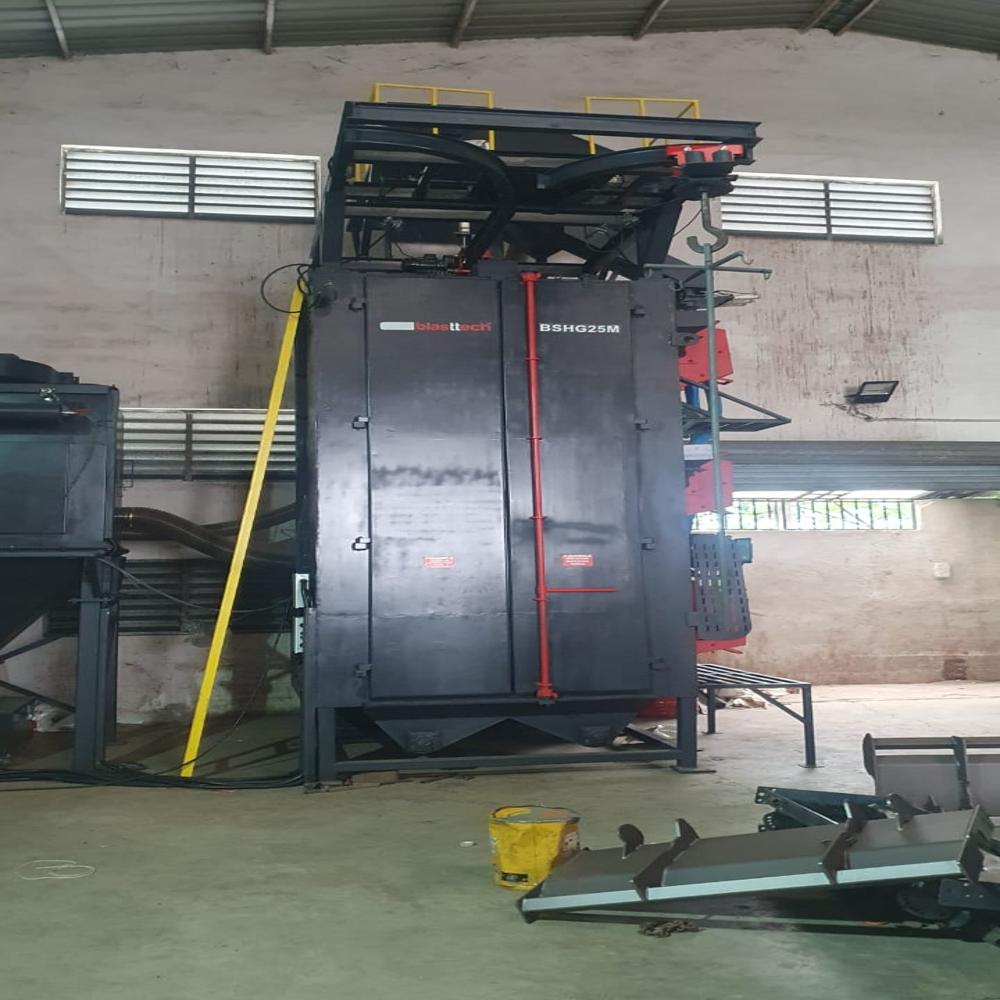

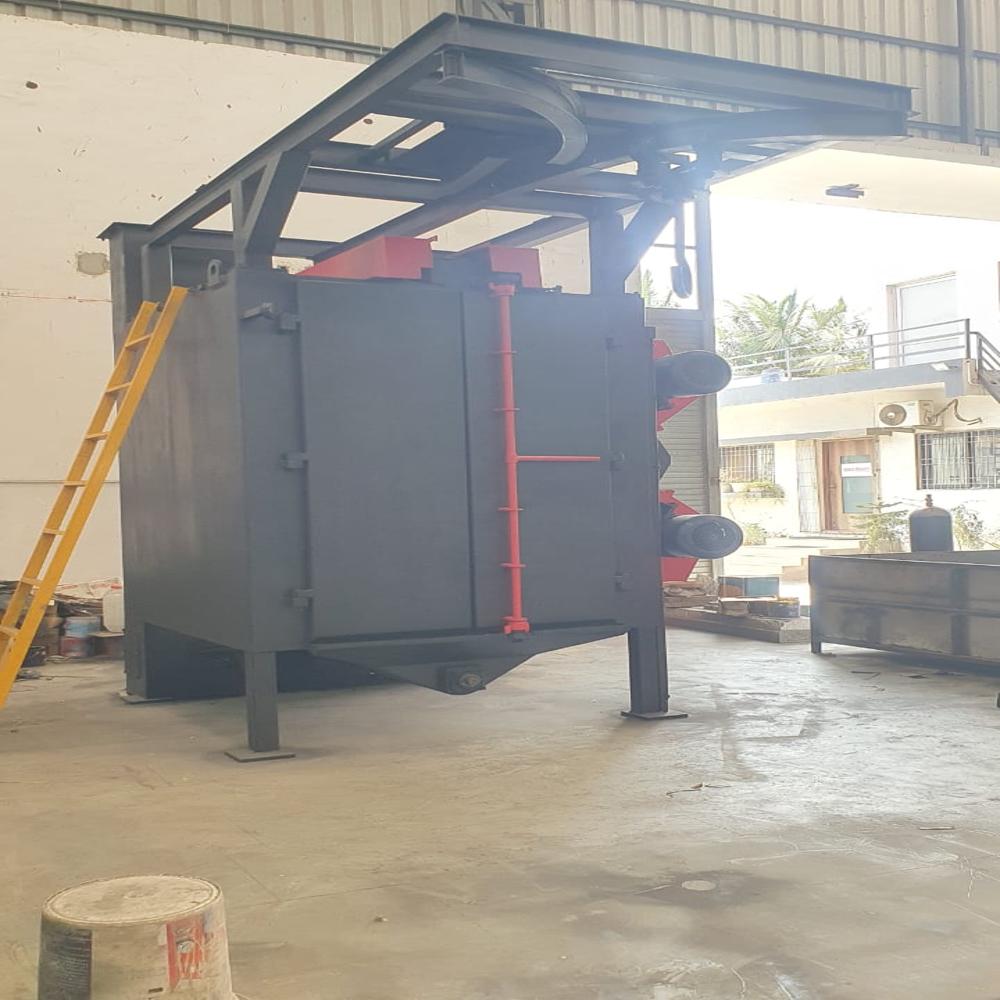

The Hanger-Type Shot Blasting Machine is ideal for cleaning, descaling, and surface preparation of heavy or complex-shaped components. Workpieces are hung on rotating hooks inside an enclosed chamber and blasted uniformly using high-speed steel shots or grits. With a load capacity ranging from 250 kg to 5000 kg, these machines feature one or more blast wheels (7.5 kW to 30 kW each) for efficient coverage. Available in single or double-door variants, they ensure thorough cleaning without damaging the parts. An integrated dust collector maintains a clean environment, making the machine suitable for castings, forgings, and welded assemblies across various industries.

Efficient Blasting for Large Workpieces

This machine accommodates various component sizes, supporting dimensions up to 1200 mm x 1600 mm and batch weights from 500 to 2000 kg. Its powerful blast wheels deliver precise, adjustable abrasive flow to clean surfaces rapidly, making it ideal for demanding applications in steel structures and automotive components.

Reliable and Easy Maintenance Design

Engineered with heavy-duty construction and abrasion-resistant steel in wear zones, the machine offers longevity and lower maintenance. Maintenance is streamlined via front and rear service doors, facilitating convenient access for routine checks and part replacements.

Flexible Control and Versatile Applications

Advanced PLC controls and optional touch screen provide versatile operation modes, including automatic and semi-automatic functions. The system supports various industry requirements, from foundries to fabrication shops, ensuring consistent, high-quality surface treatment with customizable settings.

FAQ's of Hanger-Type Shot Blasting Machine:

Q: How does the Hanger-Type Shot Blasting Machine operate during the cleaning process?

A: The machine loads workpieces onto a rotating hanger, either manually or using a hoist, then moves them into the blasting area. Powerful blast wheels propel abrasive media against the surfaces, effectively cleaning, descaling, or preparing them for finishing. Automatic or manual hanger rotation ensures even exposure during the cleaning cycle, which typically lasts 5-15 minutes per batch.

Q: What types of applications and industries benefit most from this shot blasting machine?

A: This equipment is suited for surface treatment in the automobile, foundry, forging, fabrication, and steel structure industries. Its flexible batch capacity, robust construction, and consistent blasting efficacy make it ideal for cleaning, rust removal, and preparation of medium to large parts.

Q: When should the abrasive media flow rate be adjusted, and how is it set?

A: The abrasive flow rate, adjustable between 200-300 kg/min, should be modified based on workpiece type, surface condition, and desired cleaning intensity. Operators can set the flow rate via the machine's PLC control panel to match processing needs and optimize blasting efficiency.

Q: Where is the machine typically installed, and are there special foundation requirements?

A: Due to its heavy weight and industrial use, the shot blasting machine must be installed on a prepared foundation in a production facility. The foundation ensures stability during operation and accommodates the machine's dimensions and weight, which vary by model.

Q: How is dust and debris managed during operation?

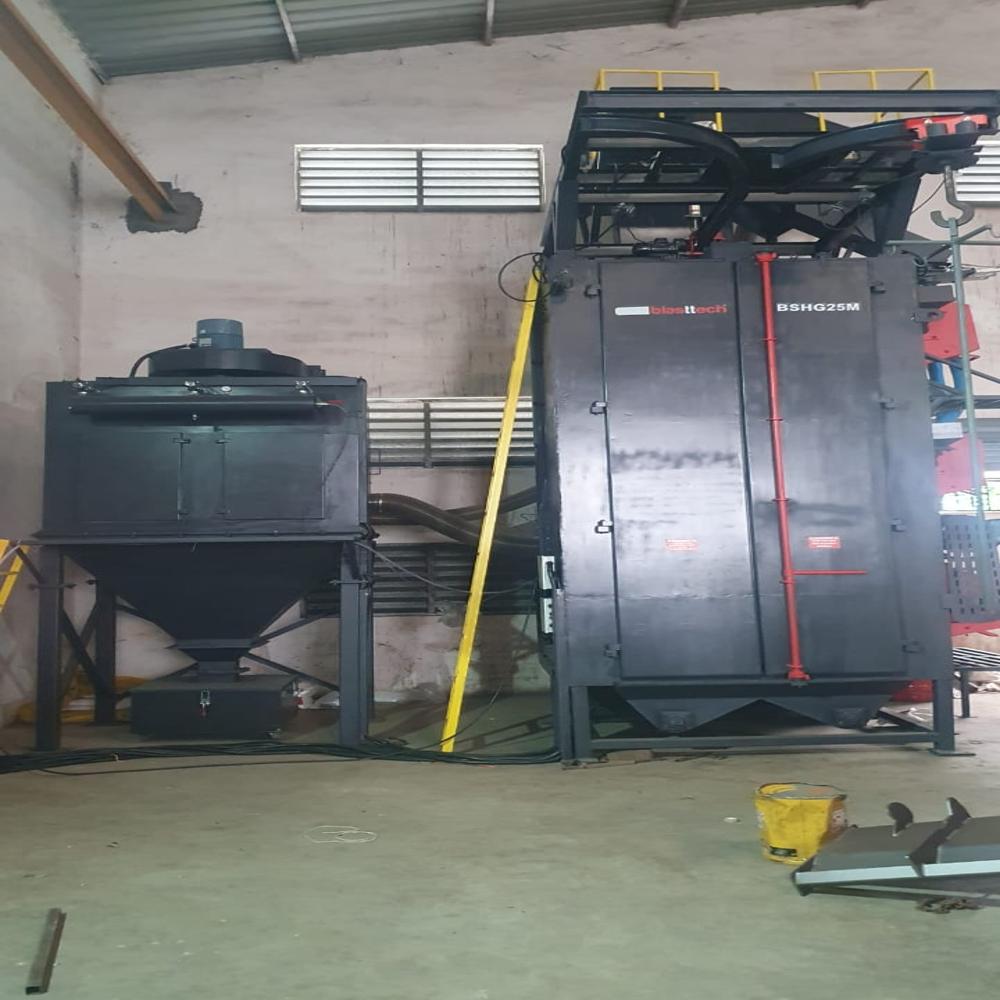

A: The system includes an advanced dust collector, which can be a cartridge filter or bag filter type. This effectively captures airborne particles generated during blasting, maintaining a clean and safe work environment while complying with workplace safety standards.

Q: What maintenance features support reliable long-term use?

A: The machine's robust design employs abrasion-resistant steel for components exposed to wear, enhancing lifespan. Front and rear service doors enable straightforward access for inspection and maintenance, ensuring minimal downtime and optimal performance.
